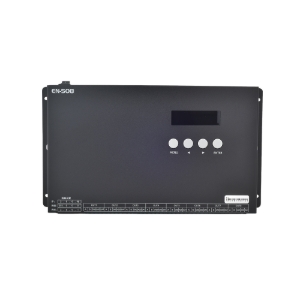

SUB LED Controller is an LED controller with unique data processing method for the display on complex architectural building facade.

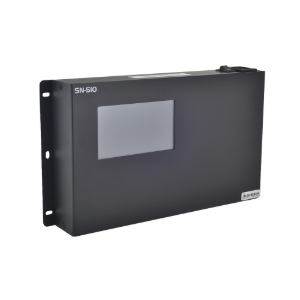

Jaquar Master LED Controller is an intelligent Cloud based master processor which Support PC and SD card integrated control; work with sub controllers, can switch freely between PC control and SD card control automatically, when needed

Technical Specifications:

• Cover Material: Iron
• Operating temperature :-15°C ~ +60°C
• Humidity: ≤50% RH
• Power consumption :<3W
• Environment: IP20
• Cascade signal: Optocoupler
• Master controller signal: Ethernet protocol
• Network interface: RJ45 Ethernet interface
• Output signal: TTL & RS-485 × 8 channels
• Control capacity: Up to 154 Sub-controllers or 4,00,000 channels
• Transmission distance: Use UTP (unshielded twisted pair) cable, distance between the controllers can be
• Weight: 2050 gm
• Dimension: 285mm (L) × 156mm (W) × 45mm (H)
• Pixel driven: Single chip: 960 pixels × 8 channels; Single-wire: 1024 pixels × 8 channels; Standard DMX512: 168 pixels × 8 channels; Extensible DMX: 336 pixels × 8 channels; Break-point resume: 960 pixels × 8 channels
