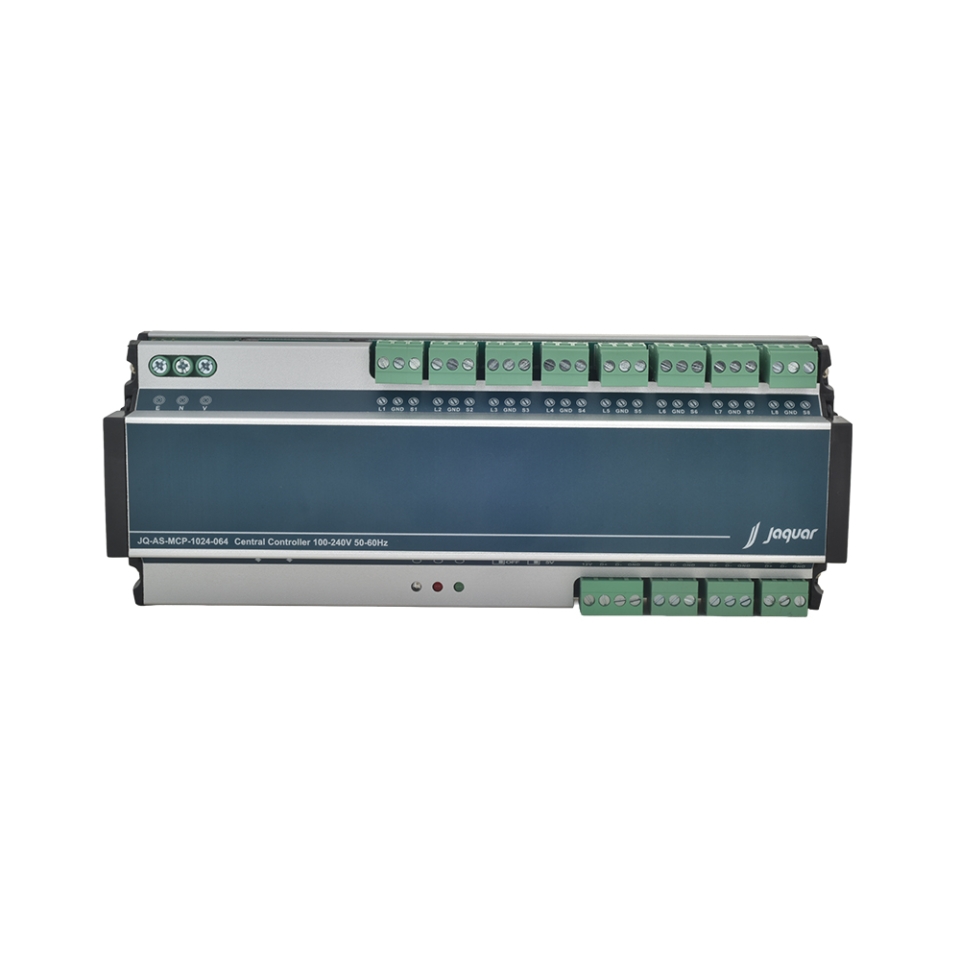

Picture of Master Control Processor

Master Control Processor

Range :
LED Driver
Code :
JQA-GRN-JNETMCP1024064
Description :
Features :
- Jaquar-MCP system
- Two DMX-512 universes. Up to 1024 channels.
- Up to 64 zones, 16 scenes can be stored in each zone.
- ECP panels compatible.
- Built-in timer and astronomical timer.
- Programmable by JQASMCP GUI.
- 8 dry contact inputs.
- Emergency scene feature
- MODBUS RTU support
Specifications :
- AC Input: 100 - 240V AC
- Protocol: JQNET (control panels),DMX-512 (dimmers packs, switch packs, or other DMX-512 modules),MODBUS RTU
- Dry contact inputs x 8
- Dimension:234mm (W) x 64mm (H) x 90mm (D)
- Weight:660g

MRP ₹ 1,73,990.00

(Inclusive of all taxes)

Detail

Master Control Processor

chatai.welcome.message

DOWNLOADS:

Product Image
Data Sheet
View Data Sheet

Disclaimer:

Jaquar reserves the right at its sole discretion, to change/modify/alter any product specification at any time without notice, where improvement can be effected in design, development and dimensions.
Although the information shown in this catalogue is updated to the extent possible but the same may vary. It is advisable to consult our local representative or check in a period manner for latest technical and other updates.
The prices are subject to change without notice and those ruling at the time of supply will be charged.
Colours & sizes of product images shown in the Website may vary in reality
