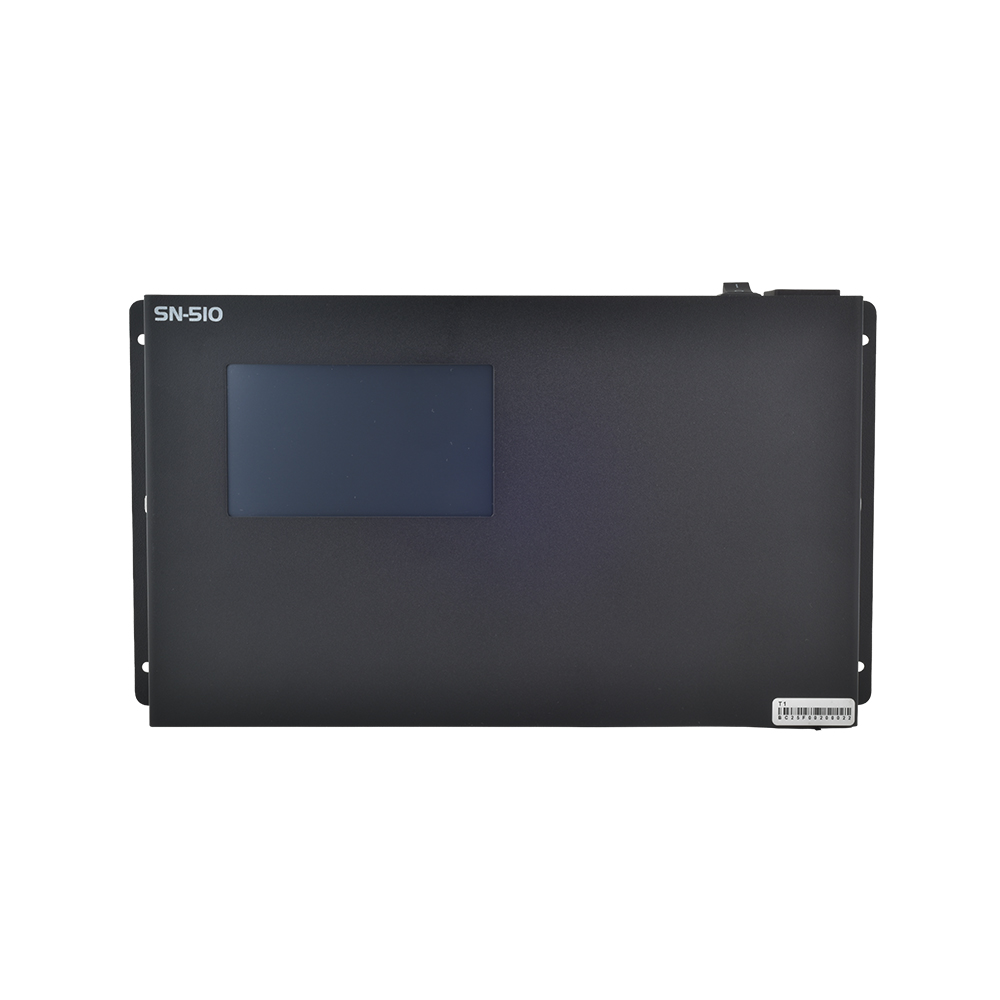

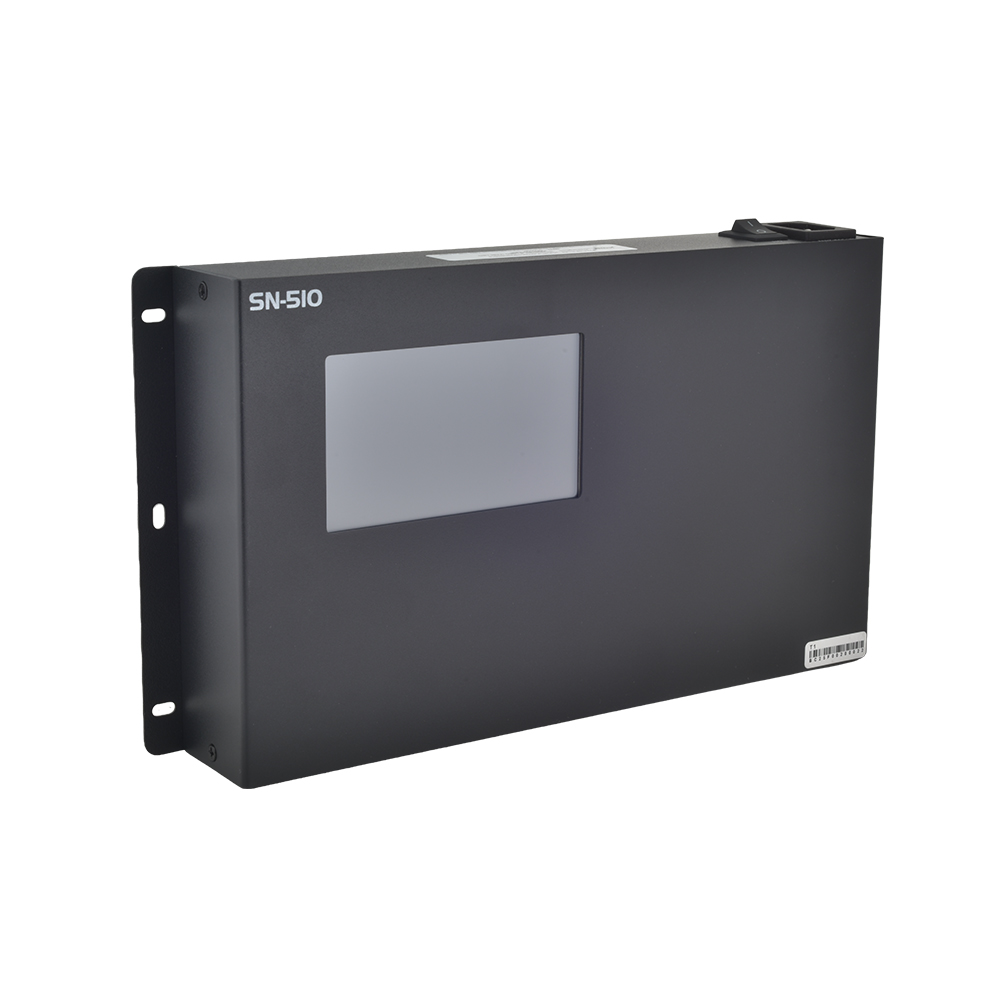

Picture of Main LED Controller
Picture of Main LED Controller Picture of Main LED Controller

Main LED Controller

  • products.productrange :
    Products
  • SKU :
    JQA-BLK-DYNCNMAINSN510
  • products.short.description :
    Jaquar Master LED Controller is an intelligent Cloud based master processor which Support PC and SD card integrated control; work with sub controllers, can switch freely between PC control and SD card control automatically, when needed
₹ 0.00

DOWNLOADS:

products.finish.note
Technical Specifications:
  • Input voltage:100V–240V AC @ 50Hz
  • Operating temperature :-15°C ~ +60°C
  • Humidity : ≤50% RH
  • Power consumption : <10W
  • Environment: IP20
  • Master cascade signal: Optocoupler
  • Sub controller signal : Ethernet protocol
  • Network interface : RJ45 Ethernet interface
  • Control capacity : Up to 154 Sub-controllers or 4,00,000 channels
  • Transmission distance: Use UTP (unshielded twisted pair) cable, distance between controllers can be 100m
  • Weight :1300 gm
  • Memory : SD card up to 16GB
  • Dimension : 285mm (L) × 156mm (W) × 44mm (H)
